Special Features:
● Reflexible solar Panel and bigger power solar panel
● High-temperature resistance battery andcircuit,can be used on the equator
● 5mm thickness PC cover and thicker aluminumcase,the weight resistance in static more than 30tons
● Diam 5mm high brightness LED,Visual Distance more than 1000meters
● Fully expoxy glue and Protect Level IP68
● White coating aluminum case and nice design
Model
CS-SR-820
Solar Panel
2.5V/250MA mono-crystalline
Storage Components
1.2V/1200MAH high temperature ni-mh battery
Lighting Time
100h after fully charged
Work Mode
flashed for 120times per minute or stable
Led Color
red, yellow, blue, green, white
Led Qty
6pcs led for double side and 6pcs or 8pcs led for 4 sides
Visual Distance
>1000 meters
Lifespan
3-5 years
Work Temperature
-20 degrees centigrade ~+80 degrees centigrade
Protect Level
IP68, can work underwater
Material
Anti-UV PC+silver aluminum coating mounting case
Weight
800g
Weight Resistance in Static
>30 Tons
Product Size
Diameter 125*110MM, Height 25mm
Package
carton size 40*28*25.5cm, 24pcs per carton
4.Size Drawing
5. Installation Procedure
1.Solar Panel:2V/100MA monocrystalline

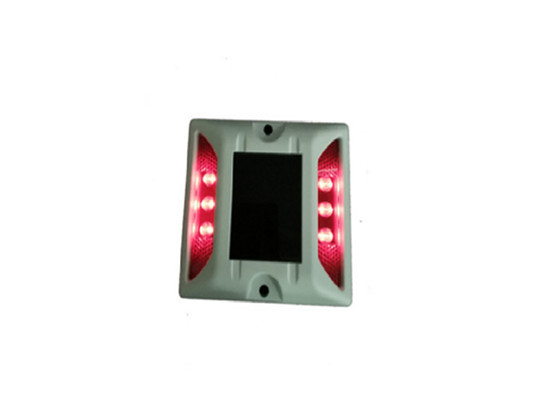

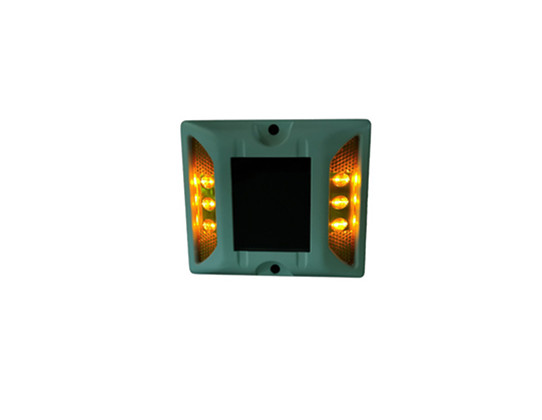

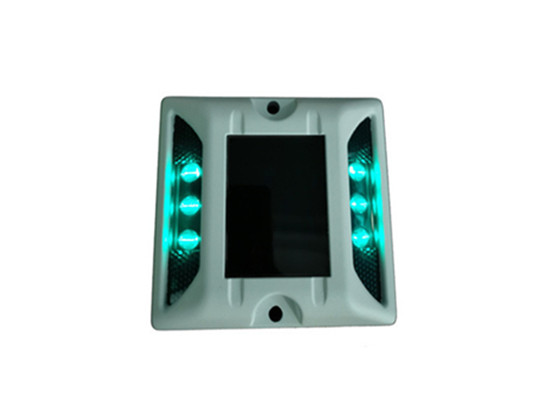

GPS timing synchronized flashing LED solar road stud
Reflexible solar Panel and bigger power solar panel, High-temperature resistance battery and circuit,can be used on the equator 5mm thickness PC cover and thicker aluminum case,the weight resistance in static more than 30tons.
