1.Special Features:

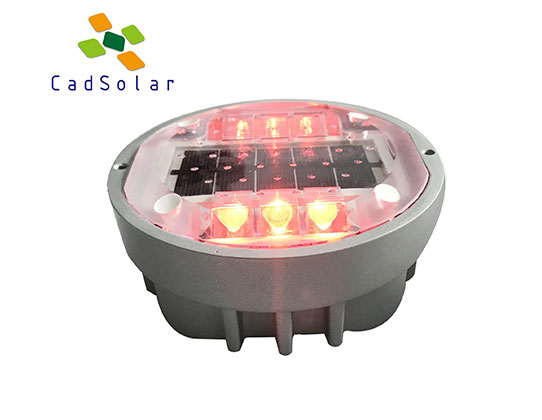

● Underground solar road studs
● High-temperature resistance battery and circuit,can be used on the equator
● 10MM thickness PC cover and fully epoxy glue inside,weight resistance in static more than 38tons
● Diam 10mm high brightness LED,Visual Distance more than 1000meters
● Protect Level IP68,Plastic waterproof circle and silicon glue for waterproof
● Silver coating aluminum casing and nice design

2.Technical Specification

Model CS-SR-815 Solar Panel 2.5V/220MA mono-crystalline
Storage Components 1.2V/1200MAH High temperature NI-MH Battery Lighting Time 100h after fully charged
Work mode Flashed for 120times per minute or Stable LED Color Red,Yellow,Blue,Green,White
LED Qty 3PCS Diameter 10mm High Brightness LED per side Visual Distance >1000meters
Life Span 3-5Years Work Temperature -20℃~+80℃
Protect Level IP68,Can work under water Material Anti-UV PC+silver coating Aluminum casing
Weight 820g Weight Resistance in static >38 Tons
Products Size Diamter 125mm,Height 50mm Package Carton size 40*28*25.5CM,24pcs per carton

3.Size Drawing

4.Installation Procedure

● Close the road
● Check if the solar stud charges and discharges normally
● Identify the place for installation
● Dig the hole for solar road studs
● Inject the epoxy glue into the hole and place the solar road studs into the hole
● Fix the wing with screws to ensure the solar road studs and the ground in the same level
● Wait 8 hours for glue drying before open the road



7.Package and Delivery
